CPVC

Mangalam Industries Pvt. Ltd. proudly introduces CPVC Hot & Cold water piping system into Nepal under license. Established in 2009, the company is into processing of polymer pipe and fitting for plumbing, drainage and industrial use.

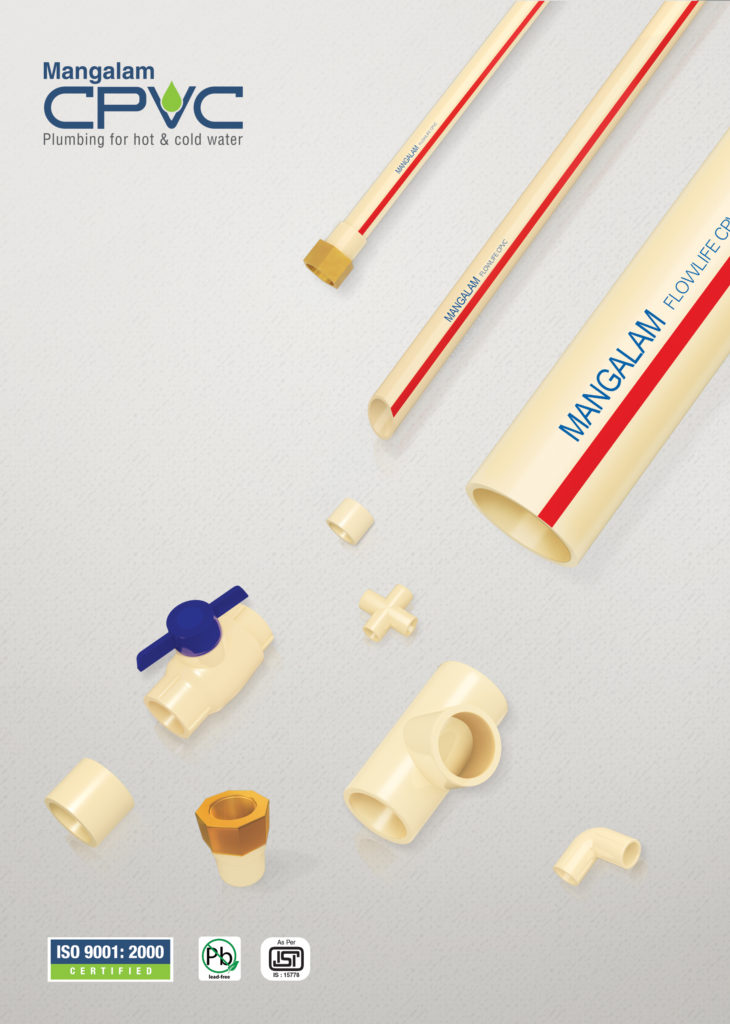

Mangalam Industries is proud to introduce the all new advanced MANGALAM CPVC PLUS. A class apart in the category, MANGALAM CPVC PLUS is more than just a hot and cold plumbing system, to us it is an initiative to deliver a world class plumbing solution. MANGALAM CPVC PLUS pipes and fittings, manufactured by Mangalam Industries Pvt. Ltd. are made from the specialty plastic, chemically known as Chlorinated Poly Vinyl Chloride (CPVC). This CPVC compound is as per IS 15778 or ASTM D-2846 and can withstand a maximum service temperature up to 93°C. This compound is carefully designed and backed by our own expertise of manufacturing CPVC piping system, which gives excellent results in all applications for CPVC piping system. It is a unique combination of the highest impact resistance without any loss in pressure bearing capacity / tensile strength or Vicat softening temperature which ensures best trouble free service. It also solves the initial installation issues of cracking / damages during handling, storage and installation.

These pipes are produced in copper tube size (CTS) from 15 mm (½”) to 50 mm (2”) with two different standard dimensional ratios – SDR-11 and SDR-13.5 (Class 1 & Class 2 respectively as per IS 15778). The fittings are produced as per SDR 11. The Pipes and Fittings in SDR 11 class also complies to ASTM standard. Mangalam also produces CPVC PLUS pipes in iron pipe size (IPS), available sizes are 65 mm (2½”) to 300 mm (12”) in SCH 40 and SCH 80 which meets the requirements of ASTM F 441. The pressure rating varies with schedule pipe size and temperature. CPVC pipes of Copper Tube Size (CTS) dimensions can also be connected to CPVC (IPS) dimensions by using IPS x CTS fittings.

Feature & benefits

Hot And Cold Water Compatible

Durable

Fire Safety

Cost Effective

Lower Bacterial Growth

Unaffected by chlorine in water

easy cold welding process

Tough, rigid material

superior insulation

Corroision Resistance
